STRUCTURE

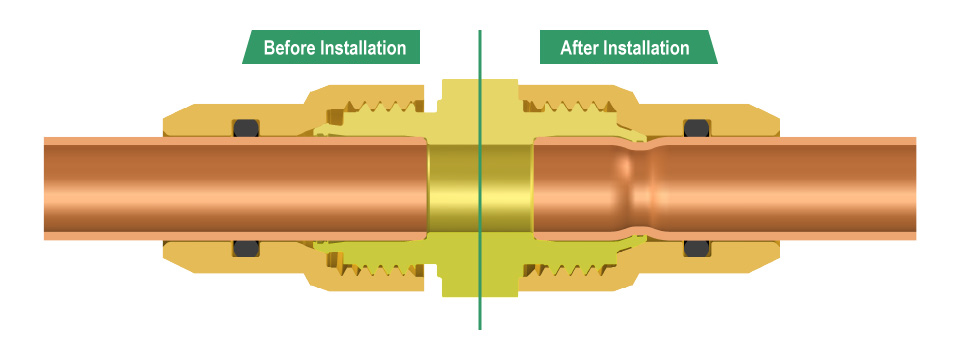

Φ6.35、Φ9.52
Prevent pull-out with Claw-Bite and ensure sealing with Claw-Bite and pipe end O-ring.

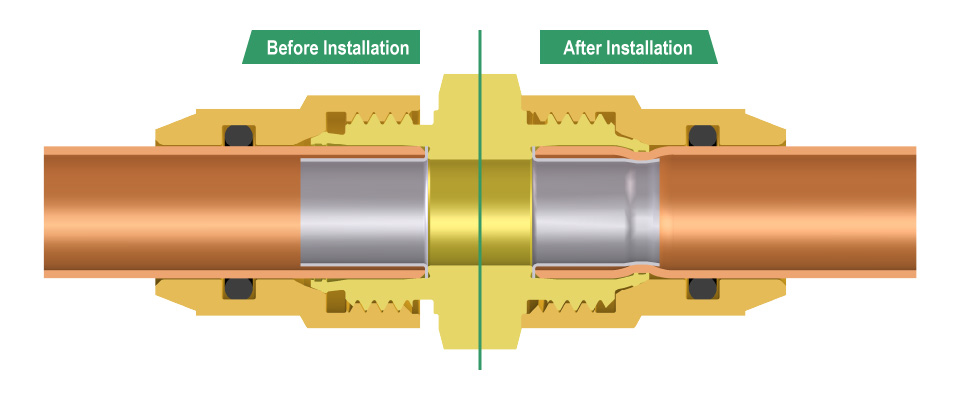

Φ12.7
Φ6.35 and Φ9.52 structures + reinforced by stainless steel inner core.

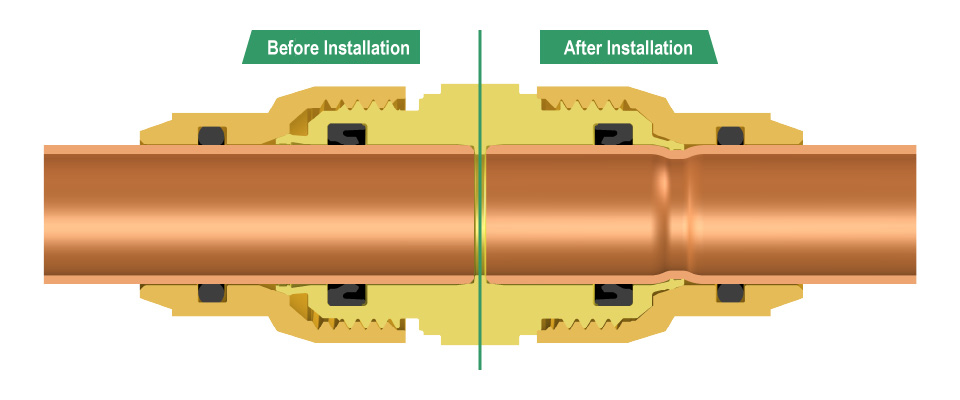

Φ15.88 ~ Φ28.58
Prevent pull-out with Claw-Bite and ensure sealing with V-packing and pipe end O-ring.

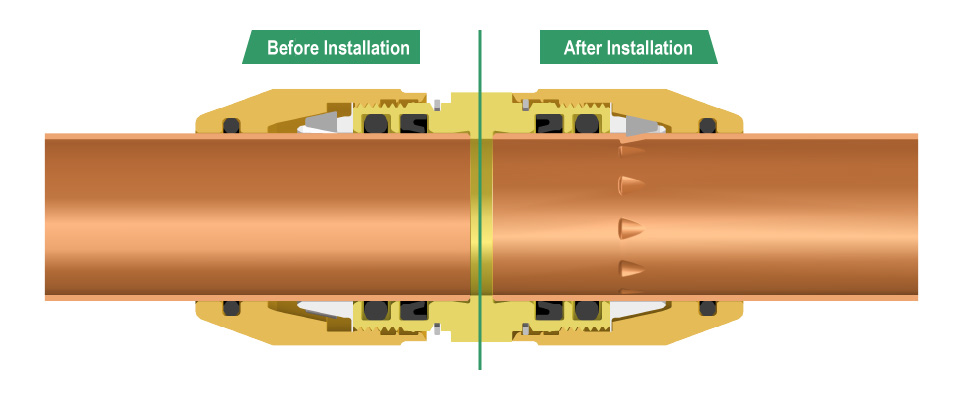

Φ31.75、Φ38.1
Prevent pull-out with Leverage Cone and ensure sealing with V-packing and O-ring.
specification
Specification
| Parts (Materials) | ||
|---|---|---|
| ①Main Body(C3771) ②Nut(C3771) ③End O-ring(EPDM) ④Inner core(SUS304) ⑤V-packing（IIR） | ||
| Performance Test | ||
| ISO 14903 A1 Permanent Connection |
We conduct the following tests: ●Air Tightness Test ●Pressure, Temperature, and Vibration Test (PTV) ●Freeze Test ●Vacuum Test ●Internal Pressure Test ●Fatigue Test ●Chemical Compatibility with Materials ●Tension Test ●Bend Test, and others. |
|
| Applicable Fluid | ||
| Refrigerant HFC | R32 R410A | |
| Refrigerant Oil | Ethereal Oil Ester Oil Polyalkylene Glycol Oil |
|
| Operating pressure and temperature range | ||
| JIS B 8607 Appendix-1 Chart-1 type O(Coil) | JIS B 8607 Appendix-1 Chart-2 type 1/2H(Straight) | Except φ6mm type 1/2H（Straight） |
| JCDA 0009 Chart-6 type O(Coil) | JCDA 0009 Chart-7 type 1/2H(Straight) | |
| JCDA 0010 Chart-6 type O(Coil) | JCDA 0010 Chart-7 type 1/2H(Straight) | |
| JIS B 8607 Appendix-1 Chart-1 type O(Coil) | JIS B 8607 Appendix-1 Chart-2 type 1/2H(Straight) | Except φ6mm type 1/2H（Straight） |
| JCDA 0009 Chart-6 type O(Coil) | JCDA 0009 Chart-7 type 1/2H(Straight) | |
| JCDA 0010 Chart-6 type O(Coil) | JCDA 0010 Chart-7 type 1/2H(Straight) | |
| Name of Standard | JIS B 8607 Refrigerant flared and welded pipe fittings | |
| JCDA 0009:insulated copper pipe / JCDA 0010:General-purpose refrigerant insulated copper pipe | ||
